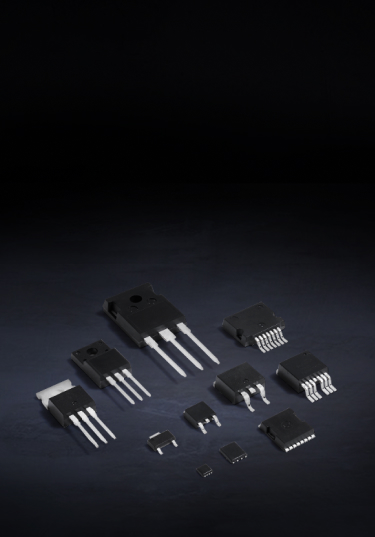

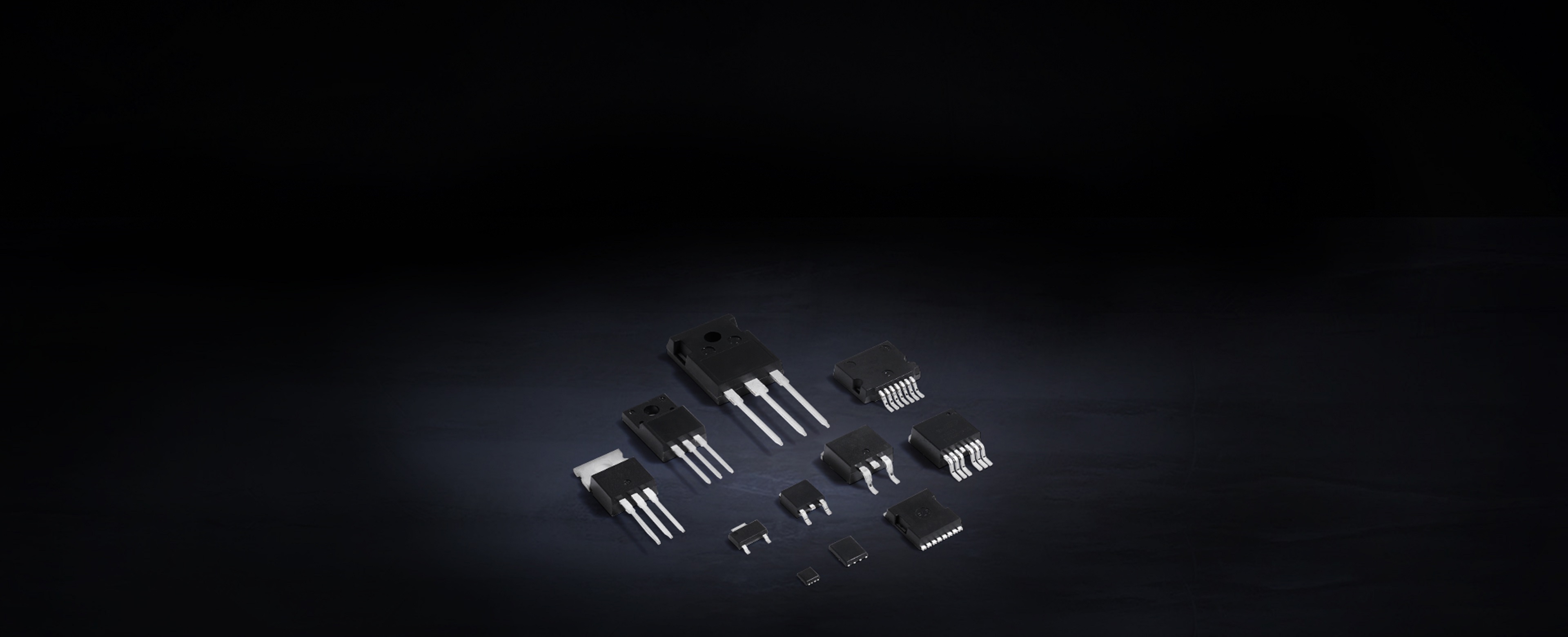

MXT MOSFETs 100V

ProductConfigurationVds [V]Ids [A] 25°CVgs(th) [Max V]Rds(on) [mOhm Max] at Vgs=Qg[nC] at 10VQgs [nC]Qgd [nC]OptionPackageDatasheet
10V4.5v
MDL1923THConfigurationSingleVds [V]100Ids [A] 25°C63.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V14.2Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V35.0Qgs [nC]11.0Qgd [nC]5.0OptionPackageTO-262DatasheetP Spice Model Info
MDD10N074RHConfigurationSingleVds [V]100Ids [A] 25°C60.0Vgs(th) [Max V]2.2Rds(on) [mOhm Max] at Vgs=10V7.8Rds(on) [mOhm Max] at Vgs=4.5v9.4Qg[nC] at 10V72.0Qgs [nC]11.0Qgd [nC]14.0OptionPackageDPAKDatasheetP Spice Model Info
MDT10N023RHConfigurationSingleVds [V]100Ids [A] 25°C300.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V2.3Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V167.0Qgs [nC]49.0Qgd [nC]33.0OptionPackageTOLLDatasheetP Spice Model Info
MDS1903URHConfigurationSingleVds [V]100Ids [A] 25°C24.0Vgs(th) [Max V]3.0Rds(on) [mOhm Max] at Vgs=10V110.0 Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V8.8Qgs [nC]1.3Qgd [nC]2.1OptionPackageSOIC-8LDatasheetP Spice Model Info
MDIS1903THConfigurationSingleVds [V]100Ids [A] 25°C25.0Vgs(th) [Max V]3.0Rds(on) [mOhm Max] at Vgs=10V105.0 Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V8.8Qgs [nC]1.7Qgd [nC]2.3 OptionPackageVS I-Pak DatasheetP Spice Model Info
MDD1902RHConfigurationSingleVds [V]100Ids [A] 25°C40.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V28.0Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V39.8Qgs [nC]11.0 Qgd [nC]11.2OptionPackageDPAKDatasheetP Spice Model Info
MDD1903RHConfigurationSingleVds [V]100Ids [A] 25°C25.0Vgs(th) [Max V]3.0Rds(on) [mOhm Max] at Vgs=10V105.0Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V8.8Qgs [nC]1.7Qgd [nC]2.3OptionPackageDPAKDatasheetP Spice Model Info
MDD1904RHConfigurationSingleVds [V]100Ids [A] 25°C25.0Vgs(th) [Max V]3.0Rds(on) [mOhm Max] at Vgs=10V140.0Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V6.7Qgs [nC]1.3 Qgd [nC]1.8OptionPackageDPAK DatasheetP Spice Model Info
MDD1901RHConfigurationSingleVds [V]100Ids [A] 25°C40.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V22.0Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V75.0Qgs [nC]12.0Qgd [nC]20.0 OptionPackageDPAK DatasheetP Spice Model Info
MDP1901TH ConfigurationSingleVds [V]100Ids [A] 25°C120.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V22.0Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V75.0Qgs [nC]20.0 Qgd [nC]18.0OptionPackageTO-220 DatasheetP Spice Model Info
MDP1921THConfigurationSingleVds [V]100 Ids [A] 25°C120.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V4.5Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V100.0 Qgs [nC]27.0Qgd [nC]26.0OptionPackageTO-220 DatasheetP Spice Model Info
MDP1923THConfigurationSingleVds [V]100Ids [A] 25°C120.0 Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V13.9Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V42.8Qgs [nC]11.7 Qgd [nC]8.0OptionPackageTO-220 DatasheetP Spice Model Info
MDF1921TH ConfigurationSingleVds [V]100Ids [A] 25°C60.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V4.8Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V100.0Qgs [nC]27.0Qgd [nC]26.0 OptionPackageTO-220F DatasheetP Spice Model Info
MDP1922THConfigurationSingleVds [V]100Ids [A] 25°C97.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V8.4Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V54.5 Qgs [nC]16.4 Qgd [nC]10.3 OptionPackageTO-220 DatasheetP Spice Model Info
MDF1922THConfigurationSingleVds [V]100Ids [A] 25°C60.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V8.7Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V54.5Qgs [nC]16.4Qgd [nC]10.3OptionPackageTO-220F DatasheetP Spice Model Info
MDE1991RHConfigurationSingleVds [V]100Ids [A] 25°C120.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V4.4Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V115.0Qgs [nC]28.0Qgd [nC]26.0OptionPackageD2PAKDatasheetP Spice Model Info
MDE10N026RHConfigurationSingleVds [V]100Ids [A] 25°C120.0 Vgs(th) [Max V]4.0 Rds(on) [mOhm Max] at Vgs=10V2.6Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V147.0 Qgs [nC]42.0Qgd [nC]28.0 OptionPackageD2PAK DatasheetP Spice Model Info
MDP10N027THConfigurationSingleVds [V]100Ids [A] 25°C120.0 Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V2.8Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V147.0Qgs [nC]42.0Qgd [nC]28.0OptionPackageTO-220 DatasheetP Spice Model Info
MDE10N050RH ConfigurationSingleVds [V]100Ids [A] 25°C120.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V5.0Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V78.0Qgs [nC]24.0 Qgd [nC]17.0OptionPackageD2PAKDatasheetP Spice Model Info
MDP10N055THConfigurationSingleVds [V]100 Ids [A] 25°C120.0 Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V5.5Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V78.0Qgs [nC]24.0Qgd [nC]17.0OptionPackageTO-220 DatasheetP Spice Model Info
MDV10N1K1URHConfigurationSingleVds [V]100Ids [A] 25°C20.0Vgs(th) [Max V]3.0Rds(on) [mOhm Max] at Vgs=10V110.0Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V9.0Qgs [nC]2.4Qgd [nC]1.5OptionPackagePDFN33DatasheetP Spice Model Info
MDU10N180RH ConfigurationSingle Vds [V]100Ids [A] 25°C40.0 Vgs(th) [Max V]2.0Rds(on) [mOhm Max] at Vgs=10V18.0 Rds(on) [mOhm Max] at Vgs=4.5v23.0 Qg[nC] at 10V30.8 Qgs [nC]6.0Qgd [nC]5.1OptionPackagePDFN56DatasheetP Spice Model Info
MDES10N025RHConfigurationSingleVds [V]100Ids [A] 25°C180.0 Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V2.5Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V147.0Qgs [nC]42.0Qgd [nC]28.0 OptionPackageD2PAK-7L DatasheetP Spice Model Info
MDQ10N026THConfigurationSingleVds [V]100Ids [A] 25°C160.0 Vgs(th) [Max V]4.0 Rds(on) [mOhm Max] at Vgs=10V2.6Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V147.0 Qgs [nC]42.0 Qgd [nC]28.0 OptionPackageTO-247 DatasheetP Spice Model Info
MDY10N025RHConfigurationSingleVds [V]100Ids [A] 25°C240.0Vgs(th) [Max V]4.0 Rds(on) [mOhm Max] at Vgs=10V2.5Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V167.0 Qgs [nC]45.0Qgd [nC]37.0 OptionPackageM2PAK-7P DatasheetP Spice Model Info
MDU10N070RH ConfigurationSingleVds [V]100Ids [A] 25°C53.0Vgs(th) [Max V]2.2Rds(on) [mOhm Max] at Vgs=10V7.4Rds(on) [mOhm Max] at Vgs=4.5v9.1Qg[nC] at 10V63.0Qgs [nC]10Qgd [nC]10OptionPackagePDFN56DatasheetP Spice Model Info
MDP1991TH ConfigurationSingleVds [V]100Ids [A] 25°C120.0 Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V5.9Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V100.0 Qgs [nC]27.0Qgd [nC]26.0 OptionPackageTO-220 DatasheetP Spice Model Info
MDF10N055THConfigurationSingleVds [V]100Ids [A] 25°C80.0Vgs(th) [Max V]4.0Rds(on) [mOhm Max] at Vgs=10V5.5Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V85.0Qgs [nC]23.0 Qgd [nC]17.0OptionPackageTO-220F DatasheetP Spice Model Info
MDHT10N1K1URH ConfigurationSingle Vds [V]100Ids [A] 25°C16.0Vgs(th) [Max V]3.0Rds(on) [mOhm Max] at Vgs=10V115.0Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V9.0Qgs [nC]2.4Qgd [nC]1.5OptionPackageSOT-223 DatasheetP Spice Model Info
SSCFETTMRoHS Compliant
